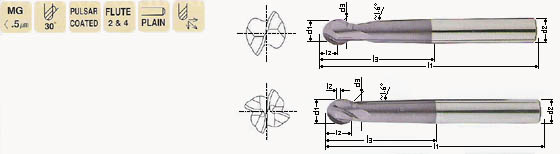

2 & 4 FLUTE, LONG
BALL NOSE CARBIDE "PULSAR" COATED END
MILLS
描述：2 & 4刃，加长型，球头，PULSAR涂层。
|
|
EDP.NO
2FLUTE
订货号
|
EDP.NO
4FLUTE
订货号
|
d1
h9
|
r
±0.01
|
d3
|
l2
|
l3
|
l1
|
d2
h6
|
lz
|
|
1523200300
|
—
|
3.0
|
1.5
|
2.5
|
4.0
|
30.0
|
80.0
|
6.0
|
1.5
|
|
1523200400
|
—
|
4.0
|
2.0
|
3.3
|
5.0
|
30.0
|
|
1523200500
|
1543200500
|
5.0
|
2.5
|
4.1
|
6.0
|
43.0
|
2
|
|
1523200600
|
1543200600
|
6.0
|
3.0
|
4.7
|
7.0
|
30.0
|
100.0
|
|
1523200800
|
1543200800
|
8.0
|
4.0
|
6.5
|
9.0
|
36.0
|
8.0
|
3
|
|
1523201000
|
1543201000
|
10.0
|
5.0
|
8.2
|
11.0
|
43.0
|
10.0
|
|
1523201200
|
1543201200
|
12.0
|
6.0
|
9.8
|
13.0
|
52.0
|
12.0
|
|
1523201600
|
1543201600
|
16.0
|
8.0
|
13.4
|
15.0
|
61.0
|
150.0
|
16.0
|
|
|
|
|
|
|
|
|
|
|
|
| |
| ADVANCED TECHNIQUE |
NORMAL MILLING |
|
 |
| |
◆
Operating angle 14°~16°,higher speed and feed
are possible by decreased cutting resistance
at the cutting edges contacting the workpiece.
◆
Excellent
surface roughness and higher milling process.

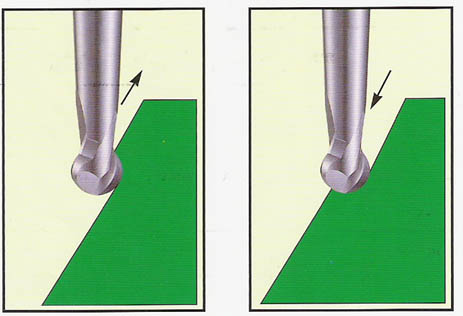

◆ Enable
to milling with higher speed and feed when Back
Milling. |
| |
 |
|
◆

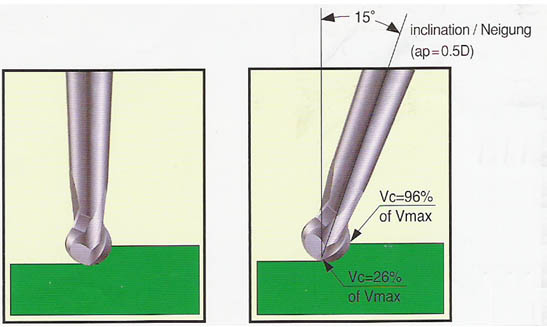

When 15° inclination milling operation, more productivity
and higher speed and feed are possible.
◆ Decreased cutting force.
◆ Excellent surface roughness
and brightness. |
|
|
