丝
锥 系 列
|
|
|
UNC
|
Unified coarse threads
Unified Grobgewinde |
|
|
|
| |
FOR
STAINLESS STEELS & TOUGH
MATERIALS
SPIRAL FLUTE |
Cat-No.TM6530
|
|
| |
|
|
 |
| |
|

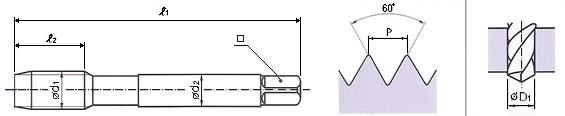

Φd1
inch
|
P
inch
|
l2
|
l1
|
d2
|
sq
|
Tapping
drill
diameter
|
EUROPA
CODE
|
|
4
|
40
|
6
|
56
|
3.5
|
2.7
|
2.3
|
TM65300400
|
|
5
|
40
|
7
|
56
|
3.5
|
2.7
|
2.6
|
TM65300500
|
|
6
|
32
|
7
|
56
|
4
|
3
|
2.85
|
TM65300600
|
|
8
|
32
|
8
|
63
|
4.5
|
3.4
|
3.5
|
TM65300800
|
|
10
|
24
|
10
|
70
|
6
|
4.9
|
3.9
|
TM65301000
|
|
12
|
24
|
10
|
80
|
6
|
4.9
|
4.5
|
TM65301200
|
|
1/4
|
20
|
13
|
80
|
7
|
5.5
|
5.2
|
TM65309160
|
|
5/16
|
18
|
14
|
90
|
8
|
6.2
|
6.6
|
TM65309200
|
|
3/8
|
16
|
16
|
100
|
9
|
7
|
8
|
TM65309240
|
|
7/16
|
14
|
17
|
100
|
8
|
6.2
|
9.4
|
TM65309280
|
|
1/2
|
13
|
20
|
110
|
9
|
7
|
10.75
|
TM65309320
|
|
9/16
|
12
|
20
|
110
|
11
|
9
|
12.25
|
TM65309360
|
|
5/8
|
11
|
22
|
110
|
12
|
9
|
13.5
|
TM65309400
|
|
3/4
|
10
|
25
|
125
|
14
|
11
|
16.5
|
TM65309480
|
|
7/8
|
9
|
27
|
140
|
18
|
14.5
|
19.5
|
TM65309560
|
|
1”
|
8
|
30
|
160
|
20
|
16
|
22.25
|
TM65309640
|
|
|
|
|
|
|
|
|
|
| |
|

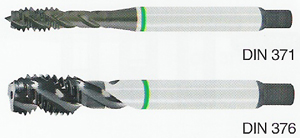

DIN 371(NO.4-3/8)
DIN 376(7/16-1")
|
| |
|
|
|
|
