丝
锥 系 列
|
|
|
M
|
ISO metric coarse
threads DIN 13
Metrisches ISO-Gewinde DIN 13 |
|
|
| |
CARBON
STEELS WITH LOW
CONTENTS OF ALLOY UP
TO 600NM
SPIRAL FLUTE |
Cat-No.TM1730
|
|
| |
|
|
 |
| |
|
Φd1
mm
|
P
mm
|
l2
|
l1
|
d2
|
sq
|
Tapping
drill
diameter
|
EUROPA
CODE
|
|
M
3
|
0.5
|
6
|
45
|
3.5
|
2.7
|
2.5
|
TM17300300
|
|
M
4
|
0.7
|
7
|
63
|
4.5
|
3.4
|
3.3
|
TM17300400
|
|
M
5
|
0.8
|
8
|
70
|
6
|
4.9
|
4.2
|
TM17300500
|
|
M
6
|
1.0
|
10
|
80
|
6
|
4.9
|
5
|
TM17300600
|
|
M
8
|
1.25
|
13
|
90
|
8
|
6.2
|
6.8
|
TM17300800
|
|
M
10
|
1.5
|
15
|
100
|
10
|
8
|
8.5
|
TM17301000
|
|
M
12
|
1.75
|
18
|
110
|
9
|
7
|
10.2
|
TM18301200
|
|
M
14
|
2.0
|
20
|
110
|
11
|
9
|
12
|
TM18301400
|
|
M
16
|
2.0
|
20
|
110
|
12
|
9
|
14
|
TM18301600
|
|
M
18
|
2.5
|
25
|
125
|
14
|
11
|
15.5
|
TM18301800
|
|
M
20
|
2.0
|
25
|
140
|
16
|
12
|
17.5
|
TM18302000
|
|
|
|
|
|
|
|
|
|
| |
|
ALL DIMENSIONS ARE
IN MM

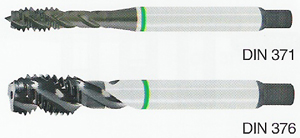

DIN 371(M3-M10)DIN 376(M12-M20)
|
| |
|
|
