ISO metric coarse
threads DIN 13
Metrisches ISO-Gewinde DIN 13 |
|
|
| |
COLD
FORMING TAPS
WITH OIL GROOVES
FOR BLIND & THROUGH HOLES IN STEELS UP TO
850NM
STAINLESS STEELS
NICKEL & COPPER
ALUMINIUM MAGNESIUM
TITAMIUM
COLD FORMING |
Cat-No.TM3827
|
|
| |
|
|
 |
| |
|
Φd1
mm
|
P
mm
|
l2
|
l1
|
d2
|
sq
|
Tapping
drill
diameter
|
EUROPA
CODE
|
|
M
2
|
0.4
|
8
|
45
|
2.8
|
2.1
|
1.83
|
TM38270200
|
|
M
2.5
|
0.45
|
9
|
50
|
2.8
|
2.1
|
2.3
|
TM38270250
|
|
M
3
|
0.5
|
11
|
56
|
3.5
|
2.7
|
2.8
|
TM38270300
|
|
M
4
|
0.7
|
13
|
63
|
4.5
|
3.4
|
3.7
|
TM38270400
|
|
M
5
|
0.8
|
15
|
70
|
6
|
4.9
|
4.65
|
TM38270500
|
|
M
6
|
1.0
|
17
|
80
|
6
|
4.9
|
5.55
|
TM38270600
|
|
M
8
|
1.25
|
20
|
90
|
8
|
6.2
|
7.4
|
TM38270800
|
|
M
10
|
1.5
|
22
|
100
|
10
|
8
|
9.3
|
TM38271000
|
|
M
12
|
1.75
|
24
|
110
|
9
|
7
|
11.2
|
TM38271200
|
|
|
|
|
|
|
|
|
|
| |
|
ALL DIMENSIONS ARE
IN MM

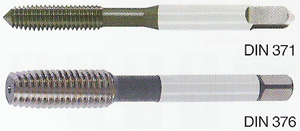

DIN 371(M2-M10)DIN 376(M12)
|
| |
|
|
