UNF
|
Unified fine threads
Unified Feingewinde |
|
|
|
| |
FOR
GENERAL STEELS UP TO 750NM
SPIRAL POINT |
Cat-No.TM6716
|
|
| |
|
|
 |
| |
|
Φd1
inch
|
P
inch
|
l2
|
l1
|
d2
|
sq
|
Tapping
drill
diameter
|
EUROPA
CODE
|
|
4
|
45
|
11
|
56
|
3.5
|
2.7
|
2.4
|
TM67160400
|
|
5
|
44
|
11
|
56
|
3.5
|
2.7
|
2.7
|
TM67160500
|
|
6
|
40
|
12
|
56
|
4
|
3
|
3
|
TM67160600
|
|
8
|
36
|
13
|
63
|
4.5
|
3.4
|
3.5
|
TM67160800
|
|
10
|
32
|
13
|
70
|
6
|
4.9
|
4.1
|
TM67161000
|
|
12
|
28
|
16
|
80
|
6
|
4.9
|
4.7
|
TM67161200
|
|
1/4
|
28
|
17
|
80
|
7
|
5.5
|
5.5
|
TM67169160
|
|
5/16
|
24
|
17
|
90
|
8
|
6.2
|
6.9
|
TM67169200
|
|
3/8
|
24
|
18
|
100
|
9
|
7
|
8.5
|
TM67169240
|
|
7/16
|
20
|
22
|
100
|
8
|
6.2
|
9.9
|
TM67169280
|
|
1/2
|
20
|
22
|
100
|
9
|
7
|
11.5
|
TM67169320
|
|
9/16
|
18
|
22
|
100
|
11
|
9
|
12.9
|
TM67169360
|
|
5/8
|
18
|
22
|
100
|
12
|
9
|
14.5
|
TM67169400
|
|
3/4
|
16
|
25
|
110
|
14
|
11
|
17.5
|
TM67169480
|
|
7/8
|
14
|
26
|
125
|
18
|
14.5
|
20.5
|
TM67169560
|
|
1”
|
12
|
28
|
140
|
20
|
16
|
23.25
|
TM67169640
|
|
|
|
|
|
|
|
|
|
| |
|

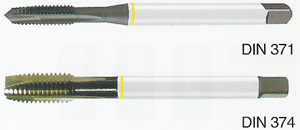

DIN 371(NO.4-3/8)
DIN 374 (7/16-1")
|
| |
|
|
|
|
