机夹式钻头系列
|
|
| |
Taper
Shank Holders

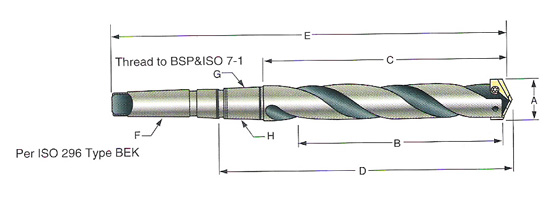

STANDARD LENGTH-SPIRAL FLUTE
|
| |
|
|
| |
| |
| |
|
Series
|
Tool
No.
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
|
Drill
Insert Range
|
Max.Drill
Depth
|
Flute
Length
|
Ref.
Length
|
Overall
Length
|
MT
|
Pipe
Tap
|
RCA
|
|
Y
|
8Y4250002M
|
9.5~11.0
|
60.3
|
80.2
|
116.7
|
188.9
|
#2
|
1/16〞
|
PR120190
|
|
Z
|
8Z4250002M
|
11.5~12.5
|
60.3
|
80.2
|
116.7
|
188.9
|
#2
|
1/16〞
|
PR120190
|
|
0
|
804250002M
|
13.0~17.5
|
63.5
|
84.1
|
121.0
|
192.9
|
#2
|
1/16〞
|
PR120190
|
|
0.5
|
814250002M
|
15.5~17.5
|
63.5
|
84.1
|
121.0
|
192.9
|
#2
|
1/16〞
|
PR120190
|
|
1
|
824250003M
|
18.0~24.0
|
171.5
|
200.0
|
244.1
|
334.2
|
#3
|
1/8〞
|
PR120254
|
|
1.5
|
834250003M
|
22.0~24.0
|
171.5
|
200.0
|
244.1
|
334.2
|
#3
|
1/8〞
|
PR120254
|
|
2
|
844250004M
|
25.0~35.0
|
187.3
|
215.9
|
262.0
|
375.4
|
#4
|
1/8〞
|
PR120254
|
|
2.5
|
854250004M
|
30.0~35.0
|
187.3
|
215.9
|
269.2
|
382.6
|
#4
|
1/4〞
|
PR120317
|
|
3
|
864250004M
|
36.0~47.0
|
209.5
|
241.3
|
295.3
|
408.0
|
#4
|
1/4〞
|
PR120317
|
|
4
|
874250005M
|
48.0~65.0
|
231.8
|
266.7
|
320.7
|
465.1
|
#5
|
1/4〞
|
PR120444
|
|
5
|
884250005M
|
64.0~88.0
|
273.1
|
317.5
|
388.9
|
531.8
|
#5
|
1/2〞
|
PR120571
|
|
7
|
894250005M
|
90.0~114.0
|
273.1
|
327.0
|
398.5
|
541.3
|
#5
|
1/2〞
|
PR120571
|
|
|
|
|
|
|
|
|
|
|
|
| |
| |
|
| |
|
|
| |
|
|
|
|
