硬 质 合 金 钻 头 系 列

Series No.805323

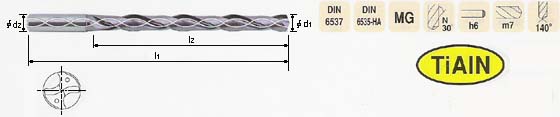

CARBIDE GOLD DRILLS WITH COOLANT HOLE EXTRA LONG

Application
Drilling into steel in general, cast steel, cast iron, cihlled cast iron, malleable cast iron, non-ferrous heavy metal, non-ferrous light metal, abrasive plastic.


Advantage:
Self centering - center drilling is not required
Excellent positioning - bush is not necessary
Special design - reaming is not required, good chip removal,powerful drilling


品名:硬质合金中空出水黄金钻头(超长型)

用途:可钻钢件、铸钢件、铸铁件、冷硬铸铁、可锻铸铁、有色金属、有色轻金属、耐磨塑料等。

优点:
自定心,不需要中心孔。
定位精准,不需要衬套。
特殊的设计,不需要铰削,排屑好,可强力钻削。


EDP NO.
O.D
d1
S.D
d2
FL
l2
OAL
l1
8053230300
3.0
6.0
34
72
8053230310
3.1
8053230320
3.2
8053230330
3.3
8053230340
3.4
8053230350
3.5
8053230360
3.6
8053230370
3.7
8053230380
3.8
6.0
43
81
8053230390
3.9
8053230400
4.0
8053230410
4.1
8053230420
4.2
8053230430
4.3
8053230440
4.4
8053230450
4.5
8053230460
4.6
8053230470
4.7
8053230480
4.8
6.0
57
95
8053230490
4.9
8053230500
5.0
8053230510
5.1
8053230520
5.2
8053230530
5.3
8053230540
5.4
8053230550
5.5
8053230560
5.6
8053230570
5.7
8053230580
5.8
8053230590
5.9
8053230600
6.0
8053230610
6.1
8.0
76
114
8053230620
6.2
8053230630
6.3
8053230640
6.4
8053230650
6.5
8053230660
6.6
8053230670
6.7
8053230680
6.8
8053230690
6.9
8053230700
7.0
8053230710
7.1
8053230720
7.2
8053230730
7.3
8053230740
7.4
8053230750
7.5
ff
EDP NO.
O.D
d1
S.D
d2
FL
l2
OAL
l1
8053230760
7.6
8.0
76
114
8053230770
7.7
8053230780
7.8
8053230790
7.9
8053230800
8.0
8053230810
8.1
10.0
95
142
8053230820
8.2
8053230830
8.3
8053230840
8.4
8053230850
8.5
8053230860
8.6
8053230870
8.7
8053230880
8.8
8053230890
8.9
8053230900
9.0
8053230910
9.1
8053230920
9.2
8053230930
9.3
8053230940
9.4
8053230950
9.5
8053230960
9.6
8053230970
9.7
8053230980
9.8
8053230990
9.9
10.0
95
142
8053231000
10.0
8053231010
10.1
12.0
114
162
8053231020
10.2
8053231030
10.3
8053231040
10.4
8053231050
10.5
8053231060
10.6
8053231070
10.7
8053231080
10.8
8053231090
10.9
8053231100
11.0
8053231110
11.1
8053231120
11.2
8053231130
11.3
8053231140
11.4
8053231150
11.5
8053231160
11.6
8053231170
11.7
8053231180
11.8
8053231190
11.9
8053231200
12.0
