钴
高 钢 铣 刀 系 列
|
|
| |
Series
No.108102
|
| |
|
|
|
| |
|

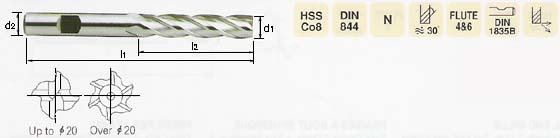

MULTI FLUTE END MILLS
Long Length, 4 & 6 Flute, with Flatted Shank
品名：多刃钴高钢铣刀
描述：加长型，4 & 6刃，平柄。
|
|
Mill
Dia.
e8(d1)
铣 径
|
Shank
Dia.
h6(d2)
柄 径
|
Flute
Length
l2
刃 长
|
Overall
Length
l1
总
长
|
No.
of
Flute
刃数
|
HSS
Co8
|
TiAlN
HSS Co8
TiAlN涂层
|
TiCN
HSS Co8
TiCN涂层
|
|
3.0
|
6.0
|
12.0
|
56.0
|
4
|
1081020300
|
1081210300
|
1081070300
|
|
3.5
|
15.0
|
59.0
|
4
|
1081020350
|
1081210350
|
1081070350
|
|
4.0
|
19.0
|
63.0
|
4
|
1081020400
|
1081210400
|
1081070400
|
|
4.5
|
19.0
|
4
|
1081020450
|
1081210450
|
1081070450
|
|
5.0
|
24.0
|
68.0
|
4
|
1081020500
|
1081210500
|
1081070500
|
|
6.0
|
24.0
|
4
|
1081020600
|
1081210600
|
1081070600
|
|
7.0
|
10.0
|
30.0
|
80.0
|
4
|
1081020700
|
1081210700
|
1081070700
|
|
8.0
|
38.0
|
88.0
|
4
|
1081020800
|
1081210800
|
1081070800
|
|
9.0
|
38.0
|
4
|
1081020900
|
1081210900
|
1081070900
|
|
10.0
|
45.0
|
95.0
|
4
|
1081021000
|
1081211000
|
1081071000
|
|
11.0
|
12.0
|
45.0
|
102.0
|
4
|
1081021100
|
1081211100
|
1081071100
|
|
12.0
|
53.0
|
110.0
|
4
|
1081021200
|
1081211200
|
1081071200
|
|
14.0
|
53.0
|
4
|
1081021400
|
1081211400
|
1081071400
|
|
16.0
|
16.0
|
63.0
|
123.0
|
4
|
1081021600
|
1081211600
|
1081071600
|
|
18.0
|
63.0
|
4
|
1081021800
|
1081211800
|
1081071800
|
|
20.0
|
20.0
|
75.0
|
141.0
|
4
|
1081022000
|
1081212000
|
1081072000
|
|
22.0
|
75.0
|
6
|
1081022200
|
1081212200
|
1081072200
|
|
24.0
|
25.0
|
90.0
|
166.0
|
6
|
1081022400
|
1081212400
|
1081072400
|
|
25.0
|
90.0
|
6
|
1081022500
|
1081212500
|
1081072500
|
|
|
|
|
|
|
|
|
|
| |
| |
|
TOLERANCE
|
|
MILL
DIA.
|
φ2.0
~ φ6.0
|
+0.040
-0
|
|
φ6.5
~
|
+0.050
-0
|
|
SHANK
DIA.
|
h6
|
|
|
|
|
|
|
|
|
|
