钴
高 钢 铣 刀 系 列
|
|
| |
Series
No.118202
|
| |
|
|
|
| |
|

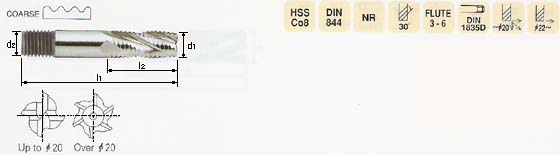

MULTI FLUTE, SHORT, COARSE PITCH ROUGHING,
SCREWED SHANK
品名：粗加工钴高钢螺旋柄铣刀
描述：多刃，短柄，粗纹，圆齿形，螺旋柄。
|
|
Mill
Dia.
e8(d1)
铣 径
|
Shank
Dia.
h6(d2)
柄 径
|
Flute
Length
l2
刃 长
|
Overall
Length
l1
总 长
|
No.
of
Flute
刃数
|
HSS
Co8
|
TiAlN
HSS Co8
TiAlN涂层
|
TiCN
HSS Co8
TiCN涂层
|
|
6.0
|
6.0
|
13.0
|
57.0
|
3
|
1182020600
|
1182050600
|
1182070600
|
|
★ 7.0
|
10.0
|
16.0
|
66.0
|
3
|
1182020700
|
1182050700
|
1182070700
|
|
8.0
|
10.0
|
19.0
|
69.0
|
3
|
1182020800
|
1182050800
|
1182070800
|
|
★ 9.0
|
10.0
|
19.0
|
69.0
|
3
|
1182020900
|
1182050900
|
1182070900
|
|
10.0
|
10.0
|
22.0
|
72.0
|
4
|
1182021000
|
1182051000
|
1182071000
|
|
★ 11.0
|
12.0
|
22.0
|
79.0
|
4
|
1182021100
|
1182051100
|
1182071100
|
|
12.0
|
12.0
|
26.0
|
83.0
|
4
|
1182021200
|
1182051200
|
1182071200
|
|
★ 13.0
|
12.0
|
26.0
|
83.0
|
4
|
1182021300
|
1182051300
|
1182071300
|
|
14.0
|
12.0
|
26.0
|
83.0
|
4
|
1182021400
|
1182051400
|
1182071400
|
|
★ 15.0
|
12.0
|
26.0
|
83.0
|
4
|
1182021500
|
1182051500
|
1182071500
|
|
16.0
|
16.0
|
32.0
|
92.0
|
4
|
1182021600
|
1182051600
|
1182071600
|
|
★ 17.0
|
16.0
|
32.0
|
92.0
|
4
|
1182021700
|
1182051700
|
1182071700
|
|
18.0
|
16.0
|
32.0
|
92.0
|
4
|
1182021800
|
1182051800
|
1182071800
|
|
★ 19.0
|
16.0
|
32.0
|
92.0
|
4
|
1182021900
|
1182051900
|
1182071900
|
|
20.0
|
16.0
|
38.0
|
98.0
|
4
|
1182029001
|
1182059001
|
1182079001
|
|
20.0
|
20.0
|
38.0
|
104.0
|
4
|
1182022000
|
1182052000
|
1182072000
|
|
★22.0
|
20.0
|
38.0
|
104.0
|
5
|
1182022200
|
1182052200
|
1182072200
|
|
★22.0
|
25.0
|
38.0
|
114.0
|
5
|
1182029002
|
1182059002
|
1182079002
|
|
|
|
|
|
|
|
|
|
24.0
|
25.0
|
45.0
|
121.0
|
5
|
1182022400
|
1182052400
|
1182072400
|
|
25.0
|
25.0
|
45.0
|
121.0
|
5
|
1182022500
|
1182052500
|
1182072500
|
|
★26.0
|
25.0
|
45.0
|
121.0
|
6
|
1182022600
|
1182052600
|
1182072600
|
|
★28.0
|
25.0
|
45.0
|
121.0
|
6
|
1182022800
|
1182052800
|
1182072800
|
|
★30.0
|
25.0
|
45.0
|
121.0
|
6
|
1182023000
|
1182053000
|
1182073000
|
|
32.0
|
32.0
|
53.0
|
133.0
|
6
|
1182023200
|
1182053200
|
1182073200
|
|
★35.0
|
32.0
|
53.0
|
133.0
|
6
|
1182023500
|
1182053500
|
1182073500
|
|
★36.0
|
32.0
|
53.0
|
133.0
|
6
|
1182023600
|
1182053600
|
1182073600
|
|
★38.0
|
32.0
|
63.0
|
143.0
|
6
|
1182023800
|
1182053800
|
1182073800
|
|
★40.0
|
32.0
|
63.0
|
143.0
|
6
|
1182024000
|
1182054000
|
1182074000
|
|
★45.0
|
32.0
|
63.0
|
143.0
|
6
|
1182024500
|
1182054500
|
1182074500
|
|
★50.0
|
32.0
|
75.0
|
155.0
|
6
|
1182025000
|
1182055000
|
1182075000
|
|
|
|
|
|
|
|
|
|
| |
| ★ Available Whilest Stocks Last. |
|
| |
|
Tolerances
according to DIN 7160 & 7161
尺 寸 公 差
|
|
|
1- 3
|
3-6
|
6-10
|
10-18
|
18-30
|
30-50
|
|
js12
|
±50
|
±60
|
±75
|
±90
|
±105
|
±125
|
|
h6
|
0
- 6
|
0
-
8
|
0
- 9
|
0
- 11
|
0
-13
|
0
-16
|
|
|
|
|
|
|
|
|
|
|
|
|
|
