钴
高 钢 铣 刀 系 列
|
|
| |
Series
No.119102
|
| |
|
|
|
| |
|

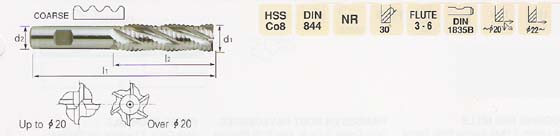

ROUGHING
END MILLS
Long Length, Multi-Flute, Coarse Pitch, Round
Profile, with Flatted Shank
品名：粗加工钴高钢铣刀
描述：加长型，多刃，粗纹，圆齿形，平柄。
|
|
Mill
Dia.
e8(d1)
铣 径
|
Shank
Dia.
h6(d2)
柄 径
|
Flute
Length
l2
刃 长
|
Overall
Length
l1 总
长
|
No.
of
Flute
刃数
|
HSS
Co8
|
TiAlN
HSS Co8
TiAlN涂层
|
TiCN
HSS Co8
TiCN涂层
|
|
6.0
|
6.0
|
24.0
|
68.0
|
3
|
1191020600
|
1191210600
|
1191070600
|
|
7.0
|
10.0
|
30.0
|
80.0
|
3
|
1191020700
|
1191210700
|
1191070700
|
|
8.0
|
38.0
|
88.0
|
3
|
1191020800
|
1191210800
|
1191070800
|
|
9.0
|
38.0
|
3
|
1191020900
|
1191210900
|
1191070900
|
|
10.0
|
45.0
|
95.0
|
4
|
1191021000
|
1191211000
|
1191071000
|
|
11.0
|
12.0
|
45.0
|
102.0
|
4
|
1191021100
|
1191211100
|
1191071100
|
|
12.0
|
53.0
|
110.0
|
4
|
1191021200
|
1191211200
|
1191071200
|
|
13.0
|
53.0
|
4
|
1191021300
|
1191211300
|
1191071300
|
|
14.0
|
53.0
|
4
|
1191021400
|
1191211400
|
1191071400
|
|
15.0
|
53.0
|
4
|
1191021500
|
1191211500
|
1191071500
|
|
16.0
|
16.0
|
63.0
|
123.0
|
4
|
1191021600
|
1191211600
|
1191071600
|
|
17.0
|
63.0
|
4
|
1191021700
|
1191211700
|
1191071700
|
|
18.0
|
63.0
|
4
|
1191021800
|
1191211900
|
1191071800
|
|
19.0
|
63.0
|
4
|
1191021900
|
1191211900
|
1191071900
|
|
20.0
|
75.0
|
135.0
|
4
|
1191029001
|
1191219001
|
1191079001
|
|
20.0
|
20.0
|
75.0
|
141.0
|
4
|
1191022000
|
1191212000
|
1191072000
|
|
22.0
|
75.0
|
5
|
1191022200
|
1191212200
|
1191072200
|
|
22.0
|
25.0
|
75.0
|
151.0
|
5
|
1191029002
|
1191219002
|
1191079002
|
|
24.0
|
90.0
|
166.0
|
5
|
1191022400
|
1191212400
|
1191072400
|
|
25.0
|
90.0
|
5
|
1191022500
|
1191212500
|
1191072500
|
|
26.0
|
90.0
|
6
|
1191022600
|
1191212600
|
1191072600
|
|
28.0
|
90.0
|
6
|
1191022800
|
1191212800
|
1191072800
|
|
30.0
|
90.0
|
6
|
1191023000
|
1191213000
|
1191073000
|
|
32.0
|
32.0
|
106.0
|
186.0
|
6
|
1191023200
|
1191213200
|
1191073200
|
|
35.0
|
106.0
|
6
|
1191023500
|
1191213500
|
1191073500
|
|
36.0
|
106.0
|
6
|
1191023600
|
1191213600
|
1191073600
|
|
38.0
|
125.0
|
217.0
|
6
|
1191023800
|
1191213800
|
1191073800
|
|
38.0
|
40.0
|
125.0
|
6
|
1191029003
|
1191219003
|
1191079003
|
|
40.0
|
32.0
|
125.0
|
6
|
1191024000
|
1191214000
|
1191074000
|
|
40.0
|
40.0
|
125.0
|
6
|
1191029004
|
1191219004
|
1191079004
|
|
|
|
|
|
|
|
|
|
| |
| |
|
Tolerances
according to DIN 7160 & 7161
尺 寸 公 差
|
|
|
1- 3
|
3-6
|
6-10
|
10-18
|
18-30
|
30-50
|
|
js12
|
±50
|
±60
|
±75
|
±90
|
±105
|
±125
|
|
h6
|
0
- 6
|
0
-
8
|
0
- 9
|
0
- 11
|
0
-13
|
0
-16
|
|
|
|
|
|
|
|
|
|
|
|
|
|
