钴
高 钢 铣 刀 系 列
|
|
| |
Series
No.119202
|
| |
|
|
|
| |
|

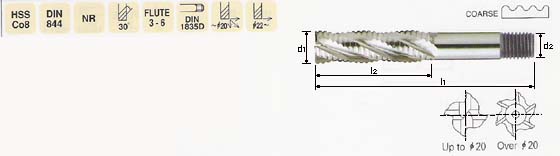

MULTI FLUTE, LONG, COARSE PITCH ROUGHING, SCREWED
SHANK
品名：粗加工钴高钢螺旋柄铣刀
描述：多刃，加长型，粗纹，圆齿形，螺旋柄。
|
|
Mill
Dia.
e8(d1)
铣 径
|
Shank
Dia.
h6(d2)
柄 径
|
Flute
Length
l2
刃 长
|
Overall
Length
l1
总 长
|
No.
of
Flute
刃数
|
HSS
Co8
|
TiAlN
HSS Co8
TiAlN涂层
|
TiCN
HSS Co8
TiCN涂层
|
|
6.0
|
6.0
|
24.0
|
68.0
|
3
|
1192020600
|
1192050600
|
1192070600
|
|
★ 7.0
|
10.0
|
30.0
|
80.0
|
3
|
1192020700
|
1192050700
|
1192070700
|
|
8.0
|
10.0
|
38.0
|
88.0
|
3
|
1192020800
|
1192050800
|
1192070800
|
|
★ 9.0
|
10.0
|
38.0
|
88.0
|
3
|
1192020900
|
1192050900
|
1192070900
|
|
10.0
|
10.0
|
45.0
|
95.0
|
4
|
1192021000
|
1192051000
|
1192071000
|
|
★ 11.0
|
12.0
|
45.0
|
102.0
|
4
|
1192021100
|
1192051100
|
1192071100
|
|
12.0
|
12.0
|
53.0
|
110.0
|
4
|
1192021200
|
1192051200
|
1192071200
|
|
★ 13.0
|
12.0
|
53.0
|
110.0
|
4
|
1192021300
|
1192051300
|
1192071300
|
|
14.0
|
12.0
|
53.0
|
110.0
|
4
|
1192021400
|
1192051400
|
1192071400
|
|
★ 15.0
|
12.0
|
53.0
|
110.0
|
4
|
1192021500
|
1192051500
|
1192071500
|
|
16.0
|
16.0
|
63.0
|
123.0
|
4
|
1192021600
|
1192051600
|
1192071600
|
|
★ 17.0
|
16.0
|
63.0
|
123.0
|
4
|
1192021700
|
1192051700
|
1192071700
|
|
18.0
|
16.0
|
63.0
|
123.0
|
4
|
1192021800
|
1192051800
|
1192071800
|
|
★ 19.0
|
16.0
|
63.0
|
123.0
|
4
|
1192021900
|
1192051900
|
1192071900
|
|
20.0
|
16.0
|
75.0
|
135.0
|
4
|
1192029001
|
1192059001
|
1192079001
|
|
20.0
|
20.0
|
75.0
|
141.0
|
4
|
1192022000
|
1192052000
|
1192072000
|
|
|
|
|
|
|
|
|
|
★22.0
|
20.0
|
75.0
|
141.0
|
5
|
1192022200
|
1192052200
|
1192072200
|
|
★22.0
|
25.0
|
75.0
|
151.0
|
5
|
1192029002
|
1192059002
|
1192079002
|
|
★24.0
|
25.0
|
90.0
|
166.0
|
5
|
1192022400
|
1192052400
|
1192072400
|
|
25.0
|
25.0
|
90.0
|
166.0
|
5
|
1192022500
|
1192052500
|
1192072500
|
|
★26.0
|
25.0
|
90.0
|
166.0
|
6
|
1192022600
|
1192052600
|
1192072600
|
|
★28.0
|
25.0
|
90.0
|
166.0
|
6
|
1192022800
|
1192052800
|
1192072800
|
|
★30.0
|
25.0
|
90.0
|
166.0
|
6
|
1192023000
|
1192053000
|
1192073000
|
|
32.0
|
32.0
|
106.0
|
186.0
|
6
|
1192023200
|
1192053200
|
1192073200
|
|
★35.0
|
32.0
|
106.0
|
186.0
|
6
|
1192023500
|
1192053500
|
1192073500
|
|
★36.0
|
32.0
|
106.0
|
186.0
|
6
|
1192023600
|
1192053600
|
1192073600
|
|
★38.0
|
32.0
|
125.0
|
205.0
|
6
|
1192023800
|
1192053800
|
1192073800
|
|
★40.0
|
32.0
|
125.0
|
205.0
|
6
|
1192024000
|
1192054000
|
1192074000
|
|
|
|
|
|
|
|
|
|
| |
