钴
高 钢 铣 刀 系 列
|
|
| |
Series
No.138102
|
| |
|
|
|
| |
|
ROUGHING-FINISHING
END MILLS

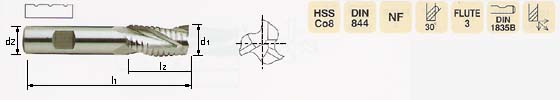

Short Length, 3 Flute, Rough-Finishing Profile,
with Flatted Shank
品名：粗精加工钴高钢共用铣刀
描述：短柄，3刃，粗精加工共用，平柄。
|
|
Mill
Dia.
e8(d1)
铣 径
|
Shank
Dia.
h6(d2)
柄 径
|
Flute
Length
l2
刃 长
|
Overall
Length
l1
总 长
|
HSS
Co8
|
TiAlN
HSS Co8
TiAlN涂层
|
TiCN
HSS Co8
TiCN涂层
|
|
6.0
|
6.0
|
13.0
|
57.0
|
1381020600
|
1381210600
|
1381070600
|
|
8.0
|
10.0
|
19.0
|
69.0
|
1381020800
|
1381210800
|
1381070800
|
|
10.0
|
22.0
|
72.0
|
1381021000
|
1381211000
|
1381071000
|
|
12.0
|
12.0
|
26.0
|
83.0
|
1381021200
|
1381211200
|
1381071200
|
|
14.0
|
26.0
|
1381021400
|
1381211400
|
1381071400
|
|
16.0
|
16.0
|
32.0
|
92.0
|
1381021600
|
1381211600
|
1381071600
|
|
18.0
|
32.0
|
1381021800
|
1381211800
|
1381071800
|
|
20.0
|
20.0
|
38.0
|
104.0
|
1381022000
|
1381212000
|
1381072000
|
|
22.0
|
38.0
|
1381022200
|
1381212200
|
1381072200
|
|
25.0
|
25.0
|
45.0
|
121.0
|
1381022500
|
1381212500
|
1381072500
|
|
28.0
|
45.0
|
1381022800
|
1381212800
|
1381072800
|
|
30.0
|
45.0
|
1381023000
|
1381213000
|
1381073000
|
|
32.0
|
32.0
|
53.0
|
133.0
|
1381023200
|
1381213200
|
1381073200
|
|
36.0
|
53.0
|
1381023600
|
1381213600
|
1381073600
|
|
40.0
|
63.0
|
155.0
|
1381024000
|
1381214000
|
1381074000
|
|
| |
| |
|
Tolerances
according to DIN 7160 & 7161
尺 寸 公 差
|
|
|
1- 3
|
3-6
|
6-10
|
10-18
|
18-30
|
30-50
|
|
js12
|
±50
|
±60
|
±75
|
±90
|
±105
|
±125
|
|
h6
|
0
- 6
|
0
-
8
|
0
- 9
|
0
- 11
|
0
-13
|
0
-16
|
|
|
|
|
|
|
|
|
|
|
|
|
|
