硬
质 合 金 铣 刀 系 列
|
|
| |
Series
No.151303(公制)
|
| |
|
|
|
| |
|

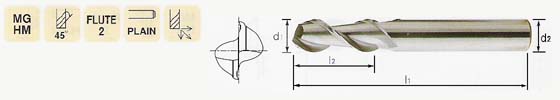

2 FLUTE MICRO
GRAIN CARBIDE END MILLS FOR ALUMINIUM
2 Flute, Helix 45°Center Cutting, with Straight
Shank
品名：2刃微晶硬质合金铝合金用铣刀
描述：2刃，45°螺旋角，过中心，直柄。
|
|
Mill
Dia.
h10(d1)
铣 径
|
Shank
Dia.
h6(d2)
柄 径
|
Flute
Length
l2
刃 长
|
Overall
Length
l1
总 长
|
Carbide
|
TiAlN
Carbide
TiAlN涂层
|
TiCN
Carbide
TiCN涂层
|
|
3.0
|
6.0
|
8.0
|
57.0
|
1513030300
|
1513230300
|
1513090300
|
|
4.0
|
11.0
|
1513030400
|
1513230400
|
1513090400
|
|
5.0
|
13.0
|
1513030500
|
1513230500
|
1513090500
|
|
6.0
|
13.0
|
1513030600
|
1513230600
|
1513090600
|
|
8.0
|
8.0
|
19.0
|
63.0
|
1513030800
|
1513230800
|
1513090800
|
|
10.0
|
10.0
|
22.0
|
72.0
|
1513031000
|
1513231000
|
1513091000
|
|
12.0
|
12.0
|
26.0
|
83.0
|
1513031200
|
1513231200
|
1513091200
|
|
14.0
|
14.0
|
26.0
|
1513031400
|
1513231400
|
1513091400
|
|
16.0
|
16.0
|
32.0
|
92.0
|
1513031600
|
1513231600
|
1513091600
|
|
18.0
|
18.0
|
32.0
|
1513031800
|
1513231800
|
1513091800
|
|
20.0
|
20.0
|
38.0
|
104.0
|
1513032000
|
1513232000
|
1513092000
|
|
|
|
|
|
|
|
|
◆ This ultrafine-grain
carbide grade has excellent wear resistance
as well as great toughness and rigidity which
is as same as normal carbide.
◆ Designed for cutting hardened & high alloy
steels, steel casting, chill casting, malleable
cast iron, CrNi-steels, brass, copper, aluminum
with a
high percentage of silicon and abrasive plastics.
◆ This universal solid carbide is applicable
to the fields of K10, K20, K40, and P40
|
| |
|
Tolerances
according to DIN 7160 &
7161
尺
寸 公
差
|
|
|
1-3
|
3-6
|
6-10
|
10-18
|
18-30
|
|
h10
|
0
-40
|
0
-48
|
0
-58
|
0
-70
|
0
-84
|
|
h6
|
0
-6
|
0
-8
|
0
-9
|
0
-11
|
0
-13
|
|
|
|
|
|
|
|
|
| |
|
