硬
质 合 金 铣 刀 系 列
|
|
| |
Series
No.301303(公制)
|
| |
|
|
|
| |

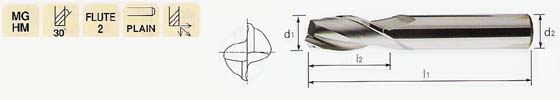

TWO FLUTE MICRO GRAIN CARBIDE END MILLS
Standard Length, 2 Flute, Center Cutting, with
Straight Shank
品名：2刃微晶硬质合金铣刀
描述：标准长，2刃，过中心，直柄。
|
|
Mill
Dia.
h10(d1)
铣 径
|
Shank
Dia.
h6(d2)
柄 径
|
Flute
Length
l2
刃 长
|
Overall
Length
l1
总 长
|
Carbide
|
TiAlN
Carbide
TiAlN涂层
|
TiCN
Carbide
TiCN涂层
|
|
1.0
|
3.0
|
4.0
|
38.0
|
3013030100
|
3013230100
|
3013090100
|
|
1.5
|
4.5
|
3013030150
|
3013230150
|
3013090150
|
|
2.0
|
6.3
|
3013030200
|
3013230200
|
3013090200
|
|
2.5
|
9.5
|
3013030250
|
3013230250
|
3013090250
|
|
3.0
|
12.0
|
3013030300
|
3013230300
|
3013090300
|
|
3.5
|
4.0
|
12.0
|
50.0
|
3013030350
|
3013230350
|
3013090350
|
|
4.0
|
14.0
|
3013030400
|
3013230400
|
3013090400
|
|
4.5
|
6.0
|
16.0
|
3013030450
|
3013230450
|
3013090450
|
|
5.0
|
16.0
|
3013030500
|
3013230500
|
3013090500
|
|
6.0
|
19.0
|
3013030600
|
3013230600
|
3013090600
|
|
7.0
|
8.0
|
19.0
|
63.0
|
3013030700
|
3013230700
|
3013090700
|
|
8.0
|
20.0
|
3013030800
|
3013230800
|
3013090800
|
|
9.0
|
10.0
|
22.0
|
75.0
|
3013030900
|
3013230900
|
3013090900
|
|
10.0
|
22.0
|
3013031000
|
3013231000
|
3013091000
|
|
11.0
|
12.0
|
25.0
|
3013031100
|
3013231100
|
3013091100
|
|
12.0
|
25.0
|
3013031200
|
3013231200
|
3013091200
|
|
14.0
|
14.0
|
32.0
|
89.0
|
3013031400
|
3013231400
|
3013091400
|
|
16.0
|
16.0
|
32.0
|
3013031600
|
3013231600
|
3013091600
|
|
18.0
|
18.0
|
38.0
|
100.0
|
3013031800
|
3013231800
|
3013091800
|
|
20.0
|
20.0
|
38.0
|
3013032000
|
3013232000
|
3013092000
|
|
25.0
|
25.0
|
38.0
|
3013032500
|
3013232500
|
3013092500
|
|
|
|
|
|
|
|
|
| |
| |
|
Tolerances
according to DIN 7160 &
7161
尺
寸 公
差
|
|
|
1-3
|
3-6
|
6-10
|
10-18
|
18-30
|
|
h10
|
0
-40
|
0
-48
|
0
-58
|
0
-70
|
0
-84
|
|
h6
|
0
-6
|
0
-8
|
0
-9
|
0
-11
|
0
-13
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
| |
|
|
|
|
