硬
质 合 金 铣 刀 系 列
|
|
| |
Series
No.302303(公制)
|
| |
|
|
|
| |

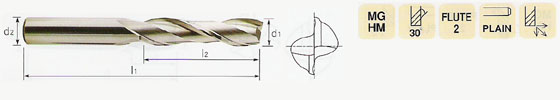

TWO FLUTE MICRO GRAIN CARBIDE END MILLS
Long Length, 2 Flute, Center Cutting, with
Straight Shank
品名：2刃微晶硬质合金铣刀
描述：加长型，2刃，过中心，直柄。
|
|
Mill
Dia.
h10(d1)
铣 径
|
Shank
Dia.
h6(d2)
柄 径
|
Flute
Length
l2
刃 长
|
Overall
Length
l1
总 长
|
Carbide
|
TiAlN
Carbide
TiAlN涂层
|
TiCN
Carbide
TiCN涂层
|
|
3.0
|
3.0
|
25.0
|
65.0
|
3023030300
|
3023230300
|
3023090300
|
|
4.0
|
4.0
|
25.0
|
3023030400
|
3023230400
|
3023090400
|
|
5.0
|
5.0
|
25.0
|
75.0
|
3023030500
|
3023230500
|
3023090500
|
|
6.0
|
6.0
|
25.0
|
3023030600
|
3023230600
|
3023090600
|
|
8.0
|
8.0
|
25.0
|
3023030800
|
3023230800
|
3023090800
|
|
10.0
|
10.0
|
38.0
|
100.0
|
3023031000
|
3023231000
|
3023091000
|
|
12.0
|
12.0
|
50.0
|
3023031200
|
3023231200
|
3023091200
|
|
14.0
|
14.0
|
75.0
|
150.0
|
3023031400
|
3023231400
|
3023091400
|
|
16.0
|
16.0
|
75.0
|
3023031600
|
3023231600
|
3023091600
|
|
18.0
|
18.0
|
75.0
|
3023031800
|
3023231800
|
3023091800
|
|
20.0
|
20.0
|
75.0
|
3023032000
|
3023232000
|
3023092000
|
|
25.0
|
25.0
|
75.0
|
3023032500
|
3023232500
|
3023092500
|
|
|
|
|
|
|
|
|
| |
| |
|
Tolerances
according to DIN 7160 &
7161
尺
寸 公
差
|
|
|
1-3
|
3-6
|
6-10
|
10-18
|
18-30
|
|
h10
|
0
-40
|
0
-48
|
0
-58
|
0
-70
|
0
-84
|
|
h6
|
0
-6
|
0
-8
|
0
-9
|
0
-11
|
0
-13
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
| |
|
|
|
|
