硬
质 合 金 铣 刀 系 列
|
|
| |
Series
No.304303(公制)
|
| |
|
|
|
| |
|

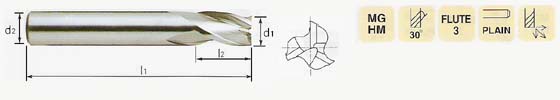

3 FLUTE MICRO
GRAIN CARBIDE END MILLS
Standard Length, 3 Flute, Center Cutting,
with Straight Shank
品名：3刃微晶硬质合金铣刀
描述：标准长，3刃，过中心，直柄。
|
|
Mill
Dia.
h10(d1)
铣 径
|
Shank
Dia.
h6(d2)
柄 径
|
Flute
Length
l2
刃 长
|
Overall
Length
l1
总 长
|
Carbide
|
TiAlN
Carbide
TiAlN涂层
|
TiCN
Carbide
TiCN涂层
|
|
1.0
|
3.0
|
4.0
|
38.0
|
3043030100
|
3043230100
|
3043090100
|
|
1.5
|
4.5
|
3043030150
|
3043230150
|
3043090150
|
|
2.0
|
6.3
|
3043030200
|
3043230200
|
3043090200
|
|
2.5
|
9.5
|
3043030250
|
3043230250
|
3043090250
|
|
3.0
|
12.0
|
3043030300
|
3043230300
|
3043090300
|
|
3.5
|
4.0
|
12.0
|
50.0
|
3043030350
|
3043230350
|
3043090350
|
|
4.0
|
14.0
|
3043030400
|
3043230400
|
3043090400
|
|
4.5
|
6.0
|
16.0
|
3043030450
|
3043230450
|
3043090450
|
|
5.0
|
16.0
|
3043030500
|
3043230500
|
3043090500
|
|
6.0
|
19.0
|
3043030600
|
3043230600
|
3043090600
|
|
7.0
|
8.0
|
19.0
|
63.0
|
3043030700
|
3043230700
|
3043090700
|
|
8.0
|
20.0
|
3043030800
|
3043230800
|
3043090800
|
|
9.0
|
10.0
|
22.0
|
75.0
|
3043030900
|
3043230900
|
3043090900
|
|
10.0
|
22.0
|
3043031000
|
3043231000
|
3043091000
|
|
11.0
|
12.0
|
25.0
|
3043031100
|
3043231100
|
3043091100
|
|
12.0
|
25.0
|
3043031200
|
3043231200
|
3043091200
|
|
14.0
|
14.0
|
32.0
|
89.0
|
3043031400
|
3043231400
|
3043091400
|
|
16.0
|
16.0
|
32.0
|
3043031600
|
3043231600
|
3043091600
|
|
18.0
|
18.0
|
38.0
|
100.0
|
3043031800
|
3043231800
|
3043091800
|
|
20.0
|
20.0
|
38.0
|
3043032000
|
3043232000
|
3043092000
|
|
25.0
|
25.0
|
38.0
|
3043032500
|
3043232500
|
3043092500
|
|
|
|
|
|
|
|
|
| |
| |
|
Tolerances
according to DIN 7160 &
7161
尺
寸 公
差
|
|
|
1-3
|
3-6
|
6-10
|
10-18
|
18-30
|
|
h10
|
0
-40
|
0
-48
|
0
-58
|
0
-70
|
0
-84
|
|
h6
|
0
-6
|
0
-8
|
0
-9
|
0
-11
|
0
-13
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
| |
|
|
|
|
