硬
质 合 金 铣 刀 系 列
|
|
| |
Series
No.310303(公制)
|
| |
|
|
|
| |
|

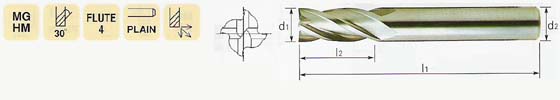

4 FLUTE MICRO
GRAIN CARBIDE END MILLS
Standard Length, 4 Flute, Center Cutting,
with Straight Shank
品名：4刃微晶硬质合金铣刀
描述：标准长，4刃，过中心，直柄。
|
|
Mill
Dia.
h10(d1)
铣 径
|
Shank
Dia.
h6(d2)
柄 径
|
Flute
Length
l2
刃 长
|
Overall
Length
l1
总 长
|
Carbide
|
TiAlN
Carbide
TiAlN涂层
|
TiCN
Carbide
TiCN涂层
|
|
1.0
|
3.0
|
4.0
|
38.0
|
3103030100
|
3103230100
|
3103090100
|
|
1.5
|
4.5
|
3103030150
|
3103230150
|
3103090150
|
|
2.0
|
6.3
|
3103030200
|
3103230200
|
3103090200
|
|
2.5
|
9.5
|
3103030250
|
3103230250
|
3103090250
|
|
3.0
|
12.0
|
3103030300
|
3103230300
|
3103090300
|
|
3.5
|
4.0
|
12.0
|
50.0
|
3103030350
|
3103230350
|
3103090350
|
|
4.0
|
14.0
|
3103030400
|
3103230400
|
3103090400
|
|
4.5
|
6.0
|
16.0
|
3103030450
|
3103230450
|
3103090450
|
|
5.0
|
16.0
|
3103030500
|
3103230500
|
3103090500
|
|
6.0
|
19.0
|
3103030600
|
3103230600
|
3103090600
|
|
7.0
|
8.0
|
19.0
|
63.0
|
3103030700
|
3103230700
|
3103090700
|
|
8.0
|
20.0
|
3103030800
|
3103230800
|
3103090800
|
|
9.0
|
10.0
|
22.0
|
75.0
|
3103030900
|
3103230900
|
3103090900
|
|
10.0
|
22.0
|
3103031000
|
3103231000
|
3103091000
|
|
11.0
|
12.0
|
25.0
|
3103031100
|
3103231100
|
3103091100
|
|
12.0
|
25.0
|
3103031200
|
3103231200
|
3103091200
|
|
14.0
|
14.0
|
32.0
|
89.0
|
3103031400
|
3103231400
|
3103091400
|
|
16.0
|
16.0
|
32.0
|
3103031600
|
3103231600
|
3103091600
|
|
18.0
|
18.0
|
38.0
|
100.0
|
3103031800
|
3103231800
|
3103091800
|
|
20.0
|
20.0
|
38.0
|
3103032000
|
3103232000
|
3103092000
|
|
25.0
|
25.0
|
38.0
|
3103032500
|
3103232500
|
3103092500
|
|
|
|
|
|
|
|
|
| |
| |
|
Tolerances
according to DIN 7160 &
7161
尺
寸 公
差
|
|
|
1-3
|
3-6
|
6-10
|
10-18
|
18-30
|
|
h10
|
0
-40
|
0
-48
|
0
-58
|
0
-70
|
0
-84
|
|
h6
|
0
-6
|
0
-8
|
0
-9
|
0
-11
|
0
-13
|
|
|
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
|
