钻 头 系 列

Series No.801303




CARBIDE DRILLS JOBBER SERIES

Application
Drilling into steel in general, cast steel, cast iron, cihlled cast iron, malleable cast iron, non-ferrous heavy metal, non-ferrous light metal, abrasive plastic.

Advantage:
Self centering - center drilling is not required
Excellent positioning - bush is not necessary
Special design - reaming is not required, good chip removal,powerful drilling


品名:硬质合金加长钻头

用途:可钻钢件、铸钢件、铸铁件、冷硬铸铁、可锻铸铁、有色金属、有色轻金属、耐磨塑料等。

优点:
自定心,不需要中心孔。
定位精准,不需要衬套。
特殊的设计,不需要铰削,排屑好,可强力钻削。

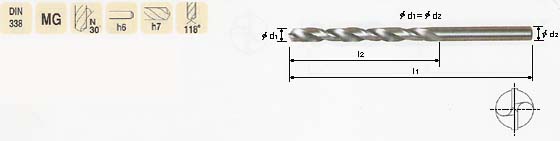

EDP NO.
O.D=S.D
d1=d2
FL
l2
OAL
l1
8013030200
2.0
24
49
8013030210
2.1
8013030220
2.2
27
53
8013030230
2.3
8013030240
2.4
30
57
8013030250
2.5
8013030260
2.6
8013030270
2.7
33
61
8013030280
2.8
8013030290
2.9
8013030300
3.0
8013030310
3.1
36
65
8013030320
3.2
8013030330
3.3
8013030340
3.4
39
70
8013030350
3.5
8013030360
3.6
8013030370
3.7
8013030380
3.8
43
75
8013030390
3.9
8013030400
4.0
8013030410
4.1
8013030420
4.2
8013030430
4.3
47
80
8013030440
4.4
8013030450
4.5
ff
EDP NO.
O.D=S.D
d1=d2
FL
l2
OAL
l1
8013030460
4.6
47
80
8013030470
4.7
8013030480
4.8
52
86
8013030490
4.9
8013030500
5.0
8013030510
5.1
8013030520
5.2
8013030530
5.3
8013030540
5.4
57
93
8013030550
5.5
8013030560
5.6
8013030570
5.7
8013030580
5.8
8013030590
5.9
8013030600
6.0
8013030610
6.1
63
101
8013030620
6.2
8013030630
6.3
8013030640
6.4
8013030650
6.5
8013030680
6.8
69
109
8013030700
7.0
8013030800
8.0
75
117
8013030850
8.5
8013031000
10.0
87
113
8013031020
10.2
