硬 质 合 金 钻 头 系 列

Series No.804323

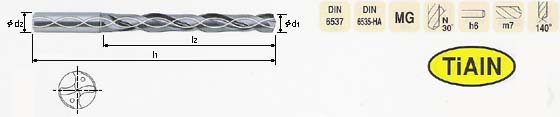

CARBIDE GOLD DRILLS WITH COOLANT HOLE LONG

Application
Drilling into steel in general, cast steel, cast iron, cihlled cast iron, malleable cast iron, non-ferrous heavy metal, non-ferrous light metal, abrasive plastic.


Advantage:
Self centering - center drilling is not required
Excellent positioning - bush is not necessary
Special design - reaming is not required, good chip removal,powerful drilling


品名:硬质合金中空出水黄金钻头(加长型)

用途:可钻钢件、铸钢件、铸铁件、冷硬铸铁、可锻铸铁、有色金属、有色轻金属、耐磨塑料等。

优点:
自定心,不需要中心孔。
定位精准,不需要衬套。
特殊的设计,不需要铰削,排屑好,可强力钻削。


EDP NO.
O.D
d1
S.D
d2
FL
l2
OAL
l1
8043230300
3.0
6.0
28
66
8043230310
3.1
8043230320
3.2
8043230330
3.3
8043230340
3.4
8043230350
3.5
8043230360
3.6
8043230370
3.7
8043230380
3.8
6.0
36
74
8043230390
3.9
8043230400
4.0
8043230410
4.1
8043230420
4.2
8043230430
4.3
8043230440
4.4
8043230450
4.5
8043230460
4.6
8043230470
4.7
8043230480
4.8
6.0
44
82
8043230490
4.9
8043230500
5.0
8043230510
5.1
8043230520
5.2
8043230530
5.3
8043230540
5.4
8043230550
5.5
8043230560
5.6
8043230570
5.7
8043230580
5.8
8043230590
5.9
8043230600
6.0
8043230610
6.1
8.0
53
91
8043230620
6.2
8043230630
6.3
8.0
53
91
8043230640
6.4
8043230650
6.5
8043230660
6.6
8043230670
6.7
8043230680
6.8
8043230690
6.9
8043230700
7.0
8043230710
7.1
8043230720
7.2
8043230730
7.3
8043230740
7.4
8043230750
7.5
8043230760
7.6
8043230770
7.7
8043230780
7.8
8043230790
7.9
8043230800
8.0
8043230810
8.1
10.0
61
103
8043230820
8.2
8043230830
8.3
8043230840
8.4
8043230850
8.5
ff
EDP NO.
O.D
d1
S.D
d2
FL
l2
OAL
l1
8043230860
8.6
10.0
61
103
8043230870
8.7
8043230880
8.8
8043230890
8.9
8043230900
9.0
8043230910
9.1
8043230920
9.2
8043230930
9.3
8043230940
9.4
8043230950
9.5
8043230960
9.6
8043230970
9.7
8043230980
9.8
8043230990
9.9
8043231000
10.0
8043231010
10.1
12.0
71
118
8043231020
10.2
8043231030
10.3
8043231040
10.4
8043231050
10.5
8043231060
10.6
8043231070
10.7
8043231080
10.8
8043231090
10.9
8043231100
11.0
8043231110
11.1
8043231120
11.2
8043231130
11.3
8043231140
11.4
8043231150
11.5
8043231160
11.6
8043231170
11.7
8043231180
11.8
8043231190
11.9
8043231200
12.0
12.0
71
118
8043231250
12.5
14.0
77
124
8043231300
13.0
8043231350
13.5
8043231400
14.0
8043231450
14.5
16.0
83
133
8043231500
15.0
8043231550
15.5
8043231600
16.0
8043231650
16.5
18.0
93
143
8043231700
17.0
8043231750
17.5
8043231800
18.0
8043231850
18.5
20.0
101
153
8043231900
19.0
8043231950
19.5
8043232000
20.0
8043232200
22.0
25.0
155
213
8043232400
24.0
8043232500
25.0
8043232600
26.0
32.0
186
248
8043232800
28.0
8043233000
30.0
