| COATED WIRE (CORE CuZn35)镀锌线 |
| |
|
| |

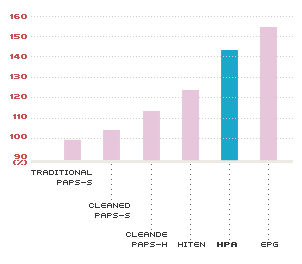

CUT-HPA type wire is suitable for fine finish
application cutting and speed cutting compared
to other competitive Zn coadted wire. At coated
wire. At the first cutting, this wire can reach
approximately 20-42% faster cutting
for various applications. Also, this wire grantees
stable
conductivity and powderless cutting. |
|
| |
|
|
| |
 |
★
High Quality Raw Material
★
High Tolerant Wire Diameter
★
Constant Tensile
★
Cleaned Wire Surface
★
Save the Running Time |
| |
|
|
| |
|
|
|
|
 |
  Suitable
Mostable |
| Standard
Economic Cutting |
|
| Thick
material Cutting |
|
| High
Accuracy Cutting |
|
| High
Speed Cutting |
|
| Powderless
Cutting |
|
|
|
|
| SPECIFICATION |
|
|
WIRE
GRADE
|
MODEL
NO.
|
DIAMETER
|
DIAMETER
TOLERANCE
|
BREAKING
LOAD(KG)
|
TENSILE
STRENGTH
|
|
|
|
|
|
|
|
HARD
|
PAPS
S-30hw
|
0.012
|
0.30
|
【0.001mm
|
6.60-6.80
|
92-98
|
900-980
|
130,000
-
142,000
|
|
PAPS
S-25hw
|
0.010
|
0.25
|
4.60-4.90
|
|
PAPS
S-20hw
|
0.008
|
0.20
|
2.94-3.10
|
|
PAPS
S-15hw
|
0.006
|
0.15
|
1.65-1.73
|
|
PAPS
S-10hw
|
0.004
|
0.10
|
0.72-0.77
|
|
SOFT
|
PAPS
S-30sw
|
0.012
|
0.30
|
【0.001mm
|
3.18-3.74
|
51-57
|
500-560
|
72,000
-
81,000
|
|
PAPS
S-25sw
|
0.010
|
0.25
|
2.21-2.60
|
|
PAPS
S-20sw
|
0.008
|
0.20
|
1.41-1.66
|
|
|
| |
|
| PRODUCT
LINEUP |
|
|
Products
|
Material
|
Tolerance
of
Diameter/mm
|
Tensile
Strength
|
Recommended
Application
|
| PAPS-S |
HW
SW |
Standard
Brass |
【0.001mm
【0.001mm |
980-1,030N/П
500-560N/П
|
Standard
cutting |
| PAPS-H |
HW
SW |
Special
brass
(More ZN) |
【0.001mm
【0.001mm |
980-1,080N/П
500-560N/П |
High
speed & precision
cutting |
| PAPS-Hiten |
HW
|
Special
Alloyed
Brass |
【0.001mm |
1,050-1,200N/П
|
High
speed & precision
cutting |
| PAPS-HPA |
HW
SW |
Standard
ZN coated |
【0.001mm
【0.001mm |
900-980N/П
500-560N/П |
High
speed & precision
cutting |
| PAPS-EPG |
HW
SW |
Standard
ZN coated |
【0.001mm
【0.001mm |
900-980N/П
500-560N/П |
Urtra
high speed &
Better precision cutting |
|
|
| |
|
| SPOOL
DIMENSIONS |
|
|
Spool
Type
|
D
(mm)
|
d
(mm)
|
L
(mm)
|
W
(mm)
|
a
(mm)
|
h
(mm)
|
(kg.)
|
No.
of Spools
Per Carton
(pcs)
|
Spool
Shape |
|
P-3
|
130
|
80
|
110
|
90
|
10
|
20
|
3
|
6
|
 |
|
P-5
|
160
|
90
|
114
|
90
|
12
|
20
|
5-6
|
2/4
|
|
P-10
|
200
|
90
|
134
|
110
|
12
|
25
|
10
|
1
|
|
P-15
|
250
|
110
|
140
|
110
|
15
|
34
|
20
|
1
|
|
P-125
|
125
|
80
|
125
|
100
|
12.5
|
16
|
3.5
|
6
|
|
P-160
|
160
|
100
|
160
|
128
|
16
|
22
|
6-8
|
2
|
|
P-200
|
200
|
125
|
200
|
160
|
20
|
22
|
16
|
1
|
|
P-355
|
355
|
224
|
200
|
160
|
20
|
36
|
45
|
1
|
|
|
| |
|
| |
|
| |
|
|
|
|
| |
|
